Double Shut-Off Hydraulic Quick Coupling with Temperature Range -20 to +180 for Construction Equipment

Productgegevens

Betalings- en verzendvoorwaarden

Min. bestelaantal: 1

Prijs: 3.5

Vind de beste prijs

Productgegevens

Productbeschrijving

Markeren:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Double Shut-Off Hydraulic Quick Coupling, Temperature Range -20 to +180 Quick Release Coupling, Construction Equipment Hydraulic Quick Connect Coupling


Modelnummer:	LSQ-S8 (ISO B Brass)	Werkdruk:	1000 psi
Temperatuurbereik:	-20ºC tot +120ºC	Afdichtmateriaal:	NBR
Gewicht van het lichaam:	1/4, 3/8, 1/2, 3/4, 1 inch	Nominale stroom:	3, 6, 12, 28, 50 gpm
Poppetklep:	Ja	Ball-locking mechanisme:	Ja
Materiaal:	Messing	Uitwisselbaarheid:	ISO 7241 -serie B
Materiaal van de stopcontact:	Solid Bar -voorraad	Compatibele serie:	Parker 60, sneller HNV, Aeroquip FD45, Hansen HK
Draadtypen:	ZG1/4, NPT1/4, ZG3/8, NPT3/8, ZG1/2, NPT1/2, ZG3/4, NPT3/4, ZG1, NPT1	Hexgroottes:	22, 27, 30, 36, 41 mm
Productiecapaciteit:	100000 stuks/maand

Modelnummer:	LSQ-S8 (ISO B Brass)
Werkdruk:	1000 psi
Temperatuurbereik:	-20ºC tot +120ºC
Afdichtmateriaal:	NBR
Gewicht van het lichaam:	1/4, 3/8, 1/2, 3/4, 1 inch
Nominale stroom:	3, 6, 12, 28, 50 gpm
Poppetklep:	Ja
Ball-locking mechanisme:	Ja
Materiaal:	Messing
Uitwisselbaarheid:	ISO 7241 -serie B
Materiaal van de stopcontact:	Solid Bar -voorraad
Compatibele serie:	Parker 60, sneller HNV, Aeroquip FD45, Hansen HK
Draadtypen:	ZG1/4, NPT1/4, ZG3/8, NPT3/8, ZG1/2, NPT1/2, ZG3/4, NPT3/4, ZG1, NPT1
Hexgroottes:	22, 27, 30, 36, 41 mm
Productiecapaciteit:	100000 stuks/maand

Double Shut-Off Hydraulic Quick Coupling with Temperature Range -20 to +180 for Construction Equipment

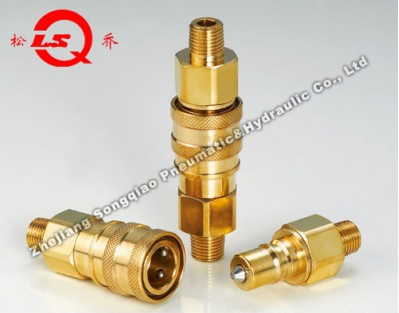

LSQ-S8 Medium-Pressure High Performance Pneumatic and Hydraulic Quick Coupling (BRASS)

LSQ-S8 medium-pressure high performance pneumatic and hydraulic quick coupling (BRASS) is designed for demanding hydraulic applications where reliable fluid transfer is essential.

Applications

LSQ-S8 couplings are used across various hydraulic applications where fluid transfer lines need frequent connection and disconnection without fluid loss. Common applications include:

Construction equipment
Forestry equipment
Agricultural machinery
Oil tools
Steel mill machinery
Other demanding hydraulic applications

Technical Specifications

Body Size (in)	1/4	3/8	1/2	3/4	1
Rated Pressure (PSI)	1000	1000	1000	1000	1000
Rated Flow (GPM)	3	6	12	28	50
Temperature Range	-20ºC to +120ºC
Standard Seal Material	NBR

Key Features

Poppet valves prevent uncoupled leakage
Automatic valve opening when coupled within rated working pressure
Dependable ball-locking mechanism for secure connection
Precision machined from solid bar stock
Conforms to ISO 7241-B standard
Compatible with PARKER 60 Series, FASTER HNV Series, AEROQUIP FD45 Series, and HANSEN HK Series

Technical Dimensions - Socket

ISO	PARTNO.	LS	¢D	HEX1	A	T
6.3	LSQ-S8-02SM	62.5	27	22	13	ZG1/4 NPT1/4
10	LSQ-S8-03SM	68.5	35	27	13	ZG3/8 NPT3/8
12.5	LSQ-S8-04SM	77.5	45	30	16	ZG1/2 NPT1/2
20	LSQ-S8-06SM	93.5	54	36	18	ZG3/4 NPT3/4
25	LSQ-S8-08SM	98	64.5	41	20	ZG1 NPT1

Technical Dimensions - Plug

ISO	PARTNO.	LP	d	C	HEX2	A	T
6.3	LSQ-S8-02PM	53	14.2	22.5	22	13	ZG1/4 NPT1/4
10	LSQ-S8-03PM	55.5	19	25	27	13	ZG3/8 NPT3/8
12.5	LSQ-S8-04PM	64.5	23.5	28	30	16	ZG1/2 NPT1/2
20	LSQ-S8-06PM	74.5	31.4	36	36	18	ZG3/4 NPT3/4
25	LSQ-S8-08SM	78	37.8	40	41	20	ZG1 NPT1

Technical Dimensions - Complete Assembly

ISO	PARTNO.	L	¢D	HEX1	HEX2	T
6.3	LSQ-S8-02	94	27	22	22	ZG1/4 NPT1/4
10	LSQ-S8-03	99	35	27	27	ZG3/8 NPT3/8
12.5	LSQ-S8-04	115.5	45	30	30	ZG1/2 NPT1/2
20	LSQ-S8-06	133	54	36	36	ZG3/4 NPT3/4
25	LSQ-S8-08	136.5	64.5	41	41	ZG1 NPT1
